Item Code: SPA-120M

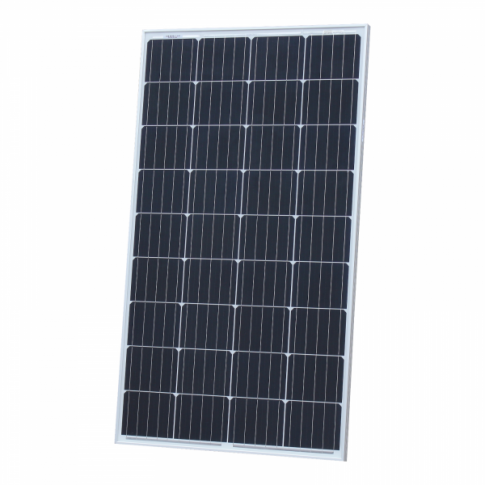

120W MONOCRYSTALLINE SOLAR PANEL WITH 5M CABLE

£119.00
( Excl VAT VAT £99.17)

Order in the next Hours Mins and Seconds,
To get your item delivered on Friday

This waterproof, affordable, high efficiency Photonic Universe 120W monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity to charge a 12V battery to power hundreds of devices and electrical appliances.

In order to achieve high output this solar panel uses innovative 5 busbar solar cells, which are more efficient than the 2, 3 or 4 busbar solar cells used in other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel for the same power rating.

The cells use advanced technology, together with the tough, sealed, aluminium frame, to allow you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 compatible connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable. The connectors can also be cut off when wiring to the screw terminals of a solar charge controller.

Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.

Several of these panels may be connected in parallel or series to generate extra power for your needs.

If you are planning to use this solar panel to charge a 12V battery or battery bank: please note this panel requires a solar charge controller / regulator to charge a 12V battery. To view the full range of solar charge controllers we offer, please visit the Solar Charge Controllers category of our online shop

Solar panel specifications:

  • Peak power: 120W
  • Maximum power voltage: 18V
  • Maximum power current: 6.67A
  • Open circuit voltage: 22.5V
  • Short circuit current: 7.02A
  • Power allowance range: 0~+3%
  • Dimensions: 1180 x 670 x 30 mm
  • Weight: 10 kg
  • 4 mounting holes
  • 2 x 5m of high quality single core solar cable (4.0mm² cross section) with MC4 compatible connectors attached

This product is covered by a 1 year workmanship warranty provided by Photonic Universe.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

This waterproof, affordable, high efficiency Photonic Universe 120W monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity to charge a 12V battery to power hundreds of devices and electrical appliances.

In order to achieve high output this solar panel uses innovative 5 busbar solar cells, which are more efficient than the 2, 3 or 4 busbar solar cells used in other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel for the same power rating.

The cells use advanced technology, together with the tough, sealed, aluminium frame, to allow you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 compatible connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable. The connectors can also be cut off when wiring to the screw terminals of a solar charge controller.

Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.

Several of these panels may be connected in parallel or series to generate extra power for your needs.

If you are planning to use this solar panel to charge a 12V battery or battery bank: please note this panel requires a solar charge controller / regulator to charge a 12V battery. To view the full range of solar charge controllers we offer, please visit the Solar Charge Controllers category of our online shop

Solar panel specifications:

  • Peak power: 120W
  • Maximum power voltage: 18V
  • Maximum power current: 6.67A
  • Open circuit voltage: 22.5V
  • Short circuit current: 7.02A
  • Power allowance range: 0~+3%
  • Dimensions: 1180 x 670 x 30 mm
  • Weight: 10 kg
  • 4 mounting holes
  • 2 x 5m of high quality single core solar cable (4.0mm² cross section) with MC4 compatible connectors attached

This product is covered by a 1 year workmanship warranty provided by Photonic Universe.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
